Nylon zipper

Your Current Location: HOME > PRODUCT > Nylon zipper
  • CF-C-3 (CLOSE END NO#3)
  • CF-C-3 (CLOSE END NO#3)

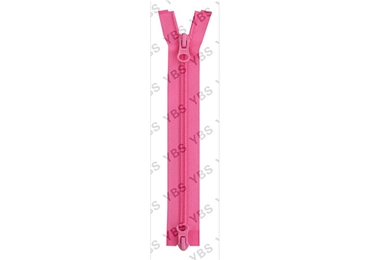

CF-C-3 (CLOSE END NO#3)


Selection of tooth color:
1. Matching teeth 2. Transparent teeth 3. Electroplating teeth
Can choose reverse wear and waterproof (TPU or Korean version) cloth tape process

Applicable Scope:
1. Light jacket or heavy cotton coat;
2. Knitwear coats;
3. Work and labor protection services;
4. Footwear;
5. Handbags, backpacks, suitcases;
6. Bedding;
7. Outdoor clothing and light tents;
8. #8 above can be used for outdoor tents or sunshade.


Details:

Details:

YBS zipper performance test standard
Lateral strength of fastener ≥ 380 Operation force/N ≤ 4
Slider over top stop/N ≥ 50 Slider against bottom stop/N ≥ 40
Slider over single top stop/box side/N ≥ 50 Lateral strength of open end/N ≥ 70
Box pull off strength/2-way OE box pull off/N ≥ 70 Slider puller pull off/N ≥ 60
Binding force of pull sheet/N ≥ 90 Puller twist/N.M ≥ 0.2
Slider mouth opening force/N ≥ 43 Slider locking/N ≥ 20
opening/closing movement / times ≥ 600 Member slippage/N ≥ N/A
coating adhesion 1. There is no change in collision test; 2. There is no change in washability after one time, and the allowable corner wear is less than 2mm after three times
color fastness Dry and wet friction, washability ≥ 4 grade
Neutral salt spray test There is no corrosion on the surface for 24 hours, and slight discoloration is allowed
